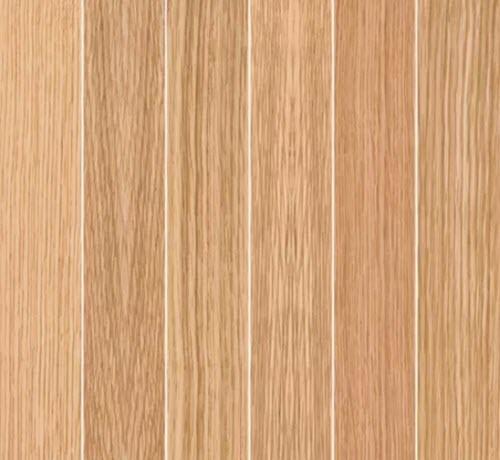

Ten standard wood veneers offer unparalleled natural beauty through varying species, graining and color.

Features

• 15 Standard veneer panel configurations in 4', 6', and 8' lengths minimize the need for customization
• 10 Standard veneer options feature various species and cuts for beautiful wood visuals
• Enhanced structural design with notched alignment backers and diagonal backers minimize the naturally occurring twist of wood and improves handleability during install
• Coordinating veneer wood trims in 4", 6", and 8" depths
• Class A fire performance
• Install in the ceiling, on the wall, or create ceiling-to-wall transitions
• Black acoustical infill panels hide the plenum for a clean, finished install visual and provide TOTAL ACOUSTICS with NRC up to .85 and CAC up to 35
• 2 Designs with at least 70% open area to minimize sprinkler install and material cost, achieving a less cluttered finished ceiling with an open aesthetic
• Installs on familiar, heavy-duty PRELUDE Grid with pre-drilled backer holes eliminate splitting for long-term durability
• Centered backers allow for a nondirectional install, providing flexibility in install layout and clean accessibility
• CLEANASSURE family of products – includes disinfectable panels, suspension systems, and trim

Specifications

• % Open Area: 69%
• Fire Performance: Class A
• Sag/Humidity Resistance: Standard
• Disinfectability: Fog, Spray, Wipe
• Durability: Washability
• Material: Wood
• Texture: Smooth
• Surface Finish: Ultra-violet clear semi-gloss coating
• Shape: Rectangle
• Weight: 4.6 lbs/SF
• Installation Method: Grid (Suspended), Hanging Kit, or Direct Attach
• Slat Height: 3-1/2"
• No. of Slats - Spacing: 5 slats - 1-5/8"

8 sq ft/ctn
