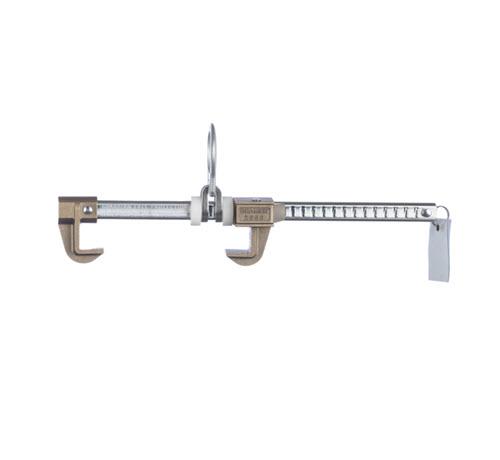

The Beamer® 2000 is a versatile trailing anchorage connector compatible with both foot-level or overhead tie-offs on structural steel I or H beams. It offers workers at height the freedom to traverse along or under beams without the need to reposition the anchor as work progresses. Durable bronze-manganese hooks allow smooth travel along the beam, and the oversized adjustment lever locks securely, yet is easily manipulated with gloved hands. At only 4 lb and requiring no tools, the Beamer 2000 can be installed in a snap.

Features

• Easy Adjustment: Oversized locking lever offers positive grip and precise adjustment even with gloved hands
• Bronze-Manganese Hooks: Long-wearing hooks slide easily along beam and resist slag or other contaminants
• Fits Wide Range of Beams: Two models to fit beams widths from 3 ½” to 16” with flanges up to 1 ¼” thick
• Nylon Bushings: Enables smooth movement of D-ring along main bar beam and acts as an impact indicator in the event of a fall
• Pivoting D-ring: Pivots as user works to keep D-ring in optimal orientation
• Precision Engineered Aluminum Bar: Lightweight and weather resistant construction resists corrosion and repels weld splatter or other contaminants

Specifications

• Minimum Breaking Strength: 5,000 lb (22.2 kN)
• Permitted Service Temperature Range: -300 to 1300 F (-340 C to 540 C)
• D-Ring: Forged and machined steel, zinc-plated
• High-Strength Bar: Aluminum
• Fixed / Adjustable Arms: Bronze manganese, or zinc-plated steel
• Internal Springs: Stainless Steel
• Product weight: 4LB / 1.81KG
• Product length: 20'' / 50.80CM
• Product height: 6'' / 15.24CM
• OSHA 1910.140, OSHA 1926.502, ANSI Z359.18
