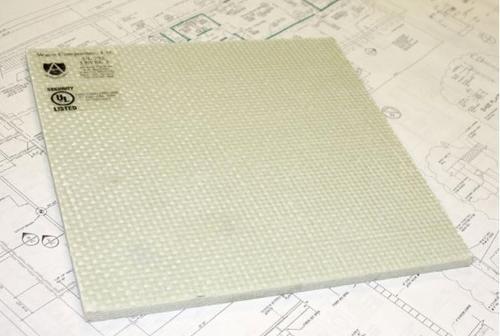

All ArmorCore fiberglass panels are made of multiple layers of woven roving ballistic grade fiberglass cloth impregnated with a thermoset polyester resin and compressed into flat rigid sheets. The production technique and materials used provide the controlled internal delamination to permit the capture of a penetrating projectile.

Performance Level

• Underwriters Laboratory UL 752 11th Edition Standard for Bullet Resisting Equipment. One hour fire rated to ASTM E119-00a Building Construction and Materials.

Ammunition Tested

• 44 magnum lead semi-wadcutter gas checked, 240 grain, 1350 fps, 3 shots

Specifications

• Nominal Thickness: 1/2”
• Nominal Weight: 5.25 lbs per square foot
